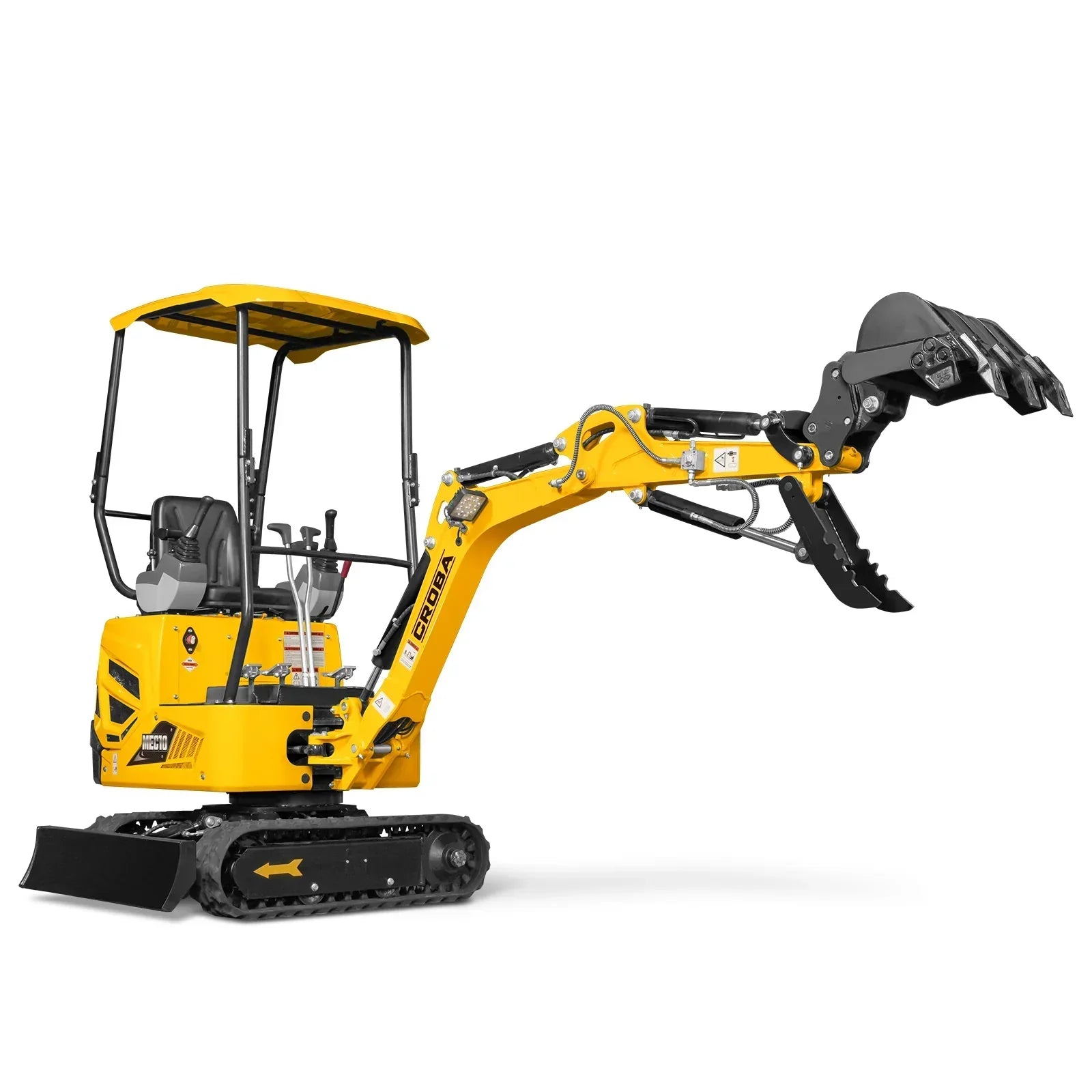

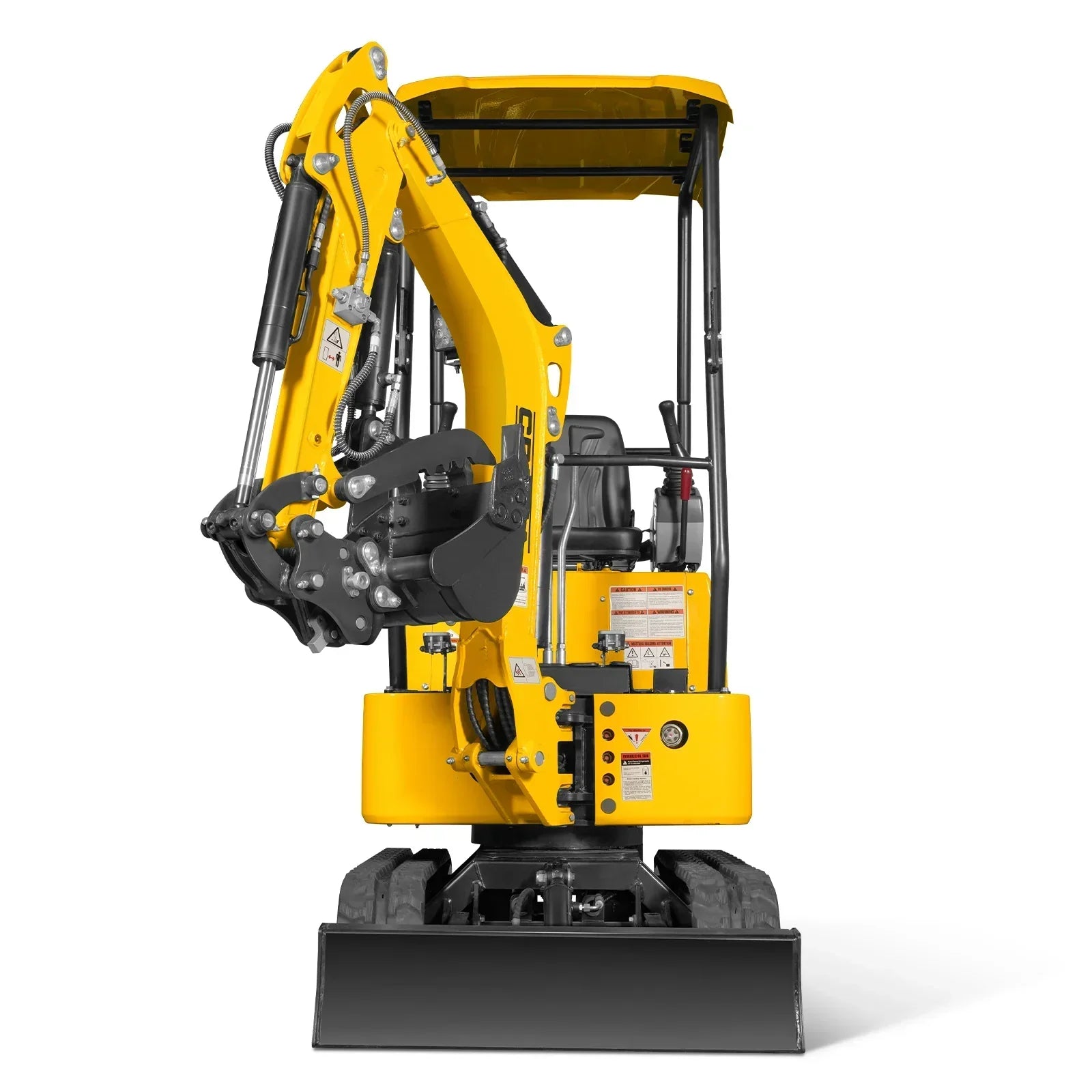

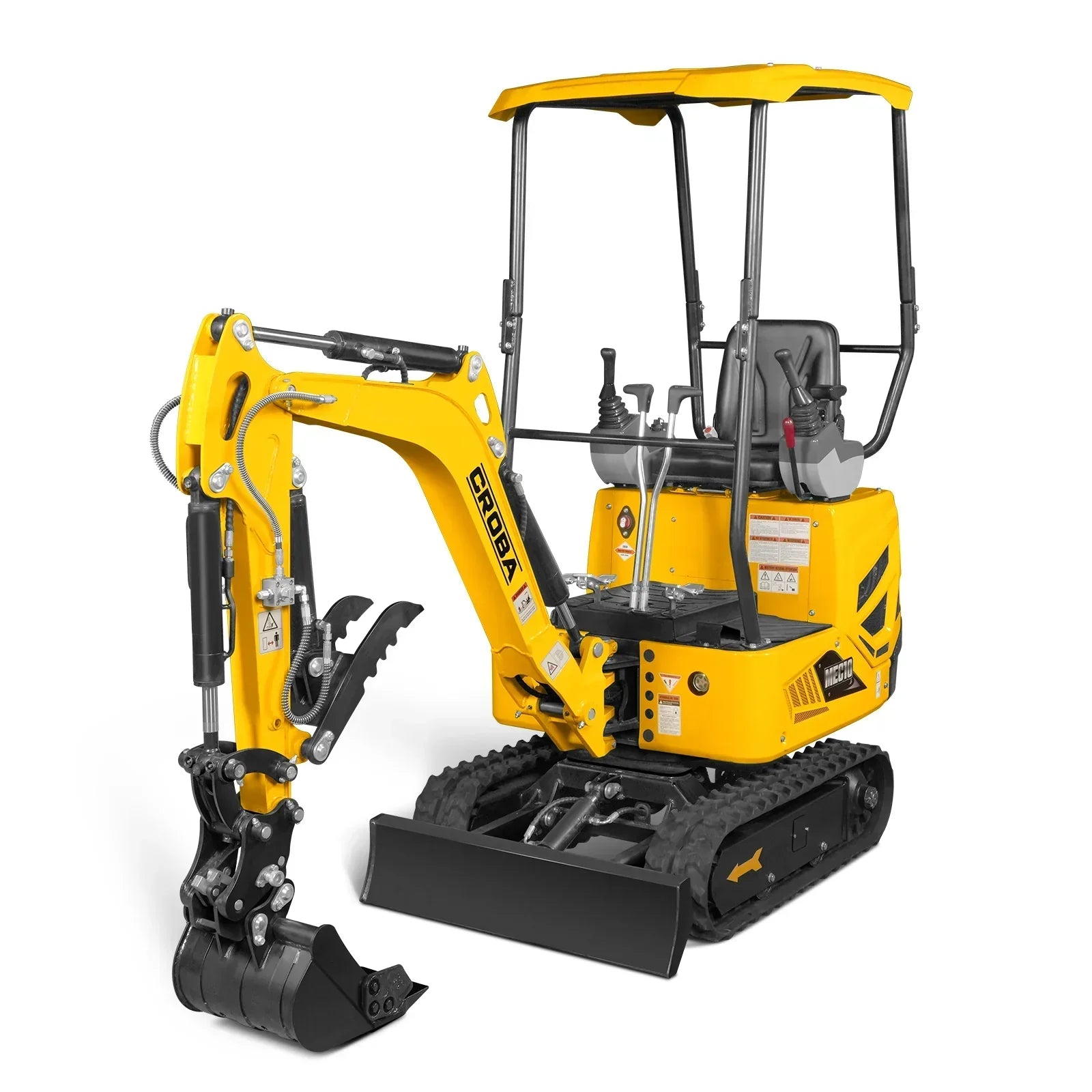

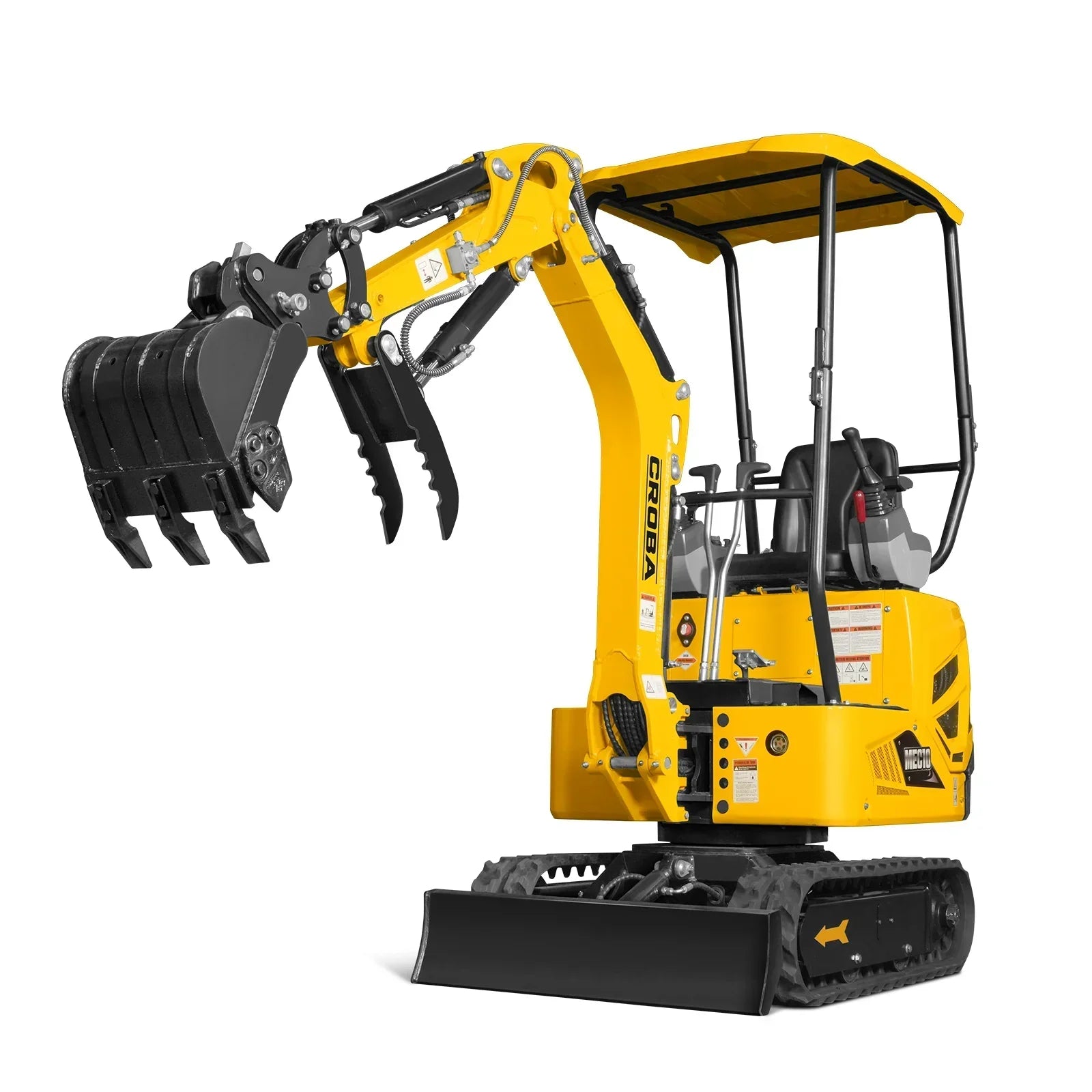

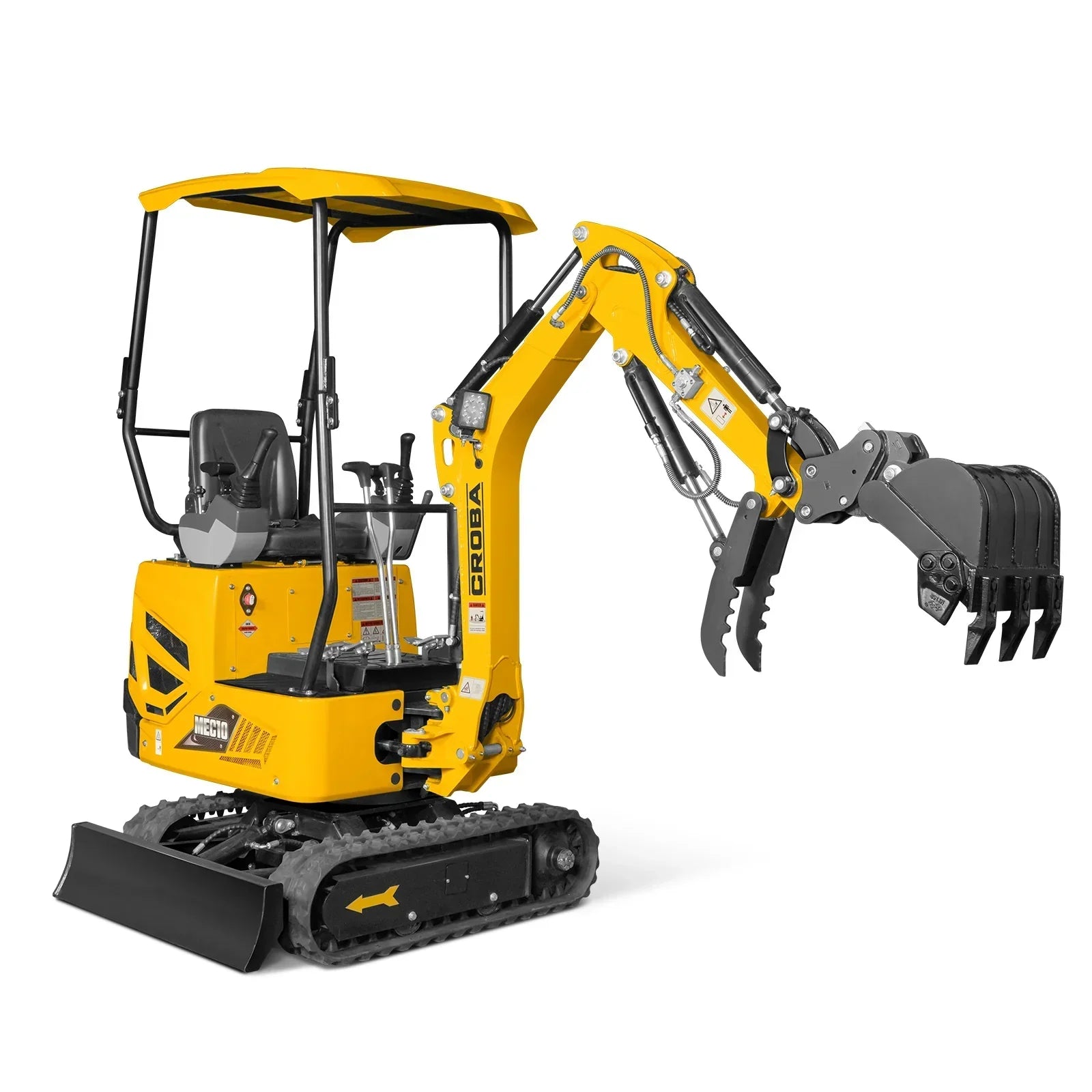

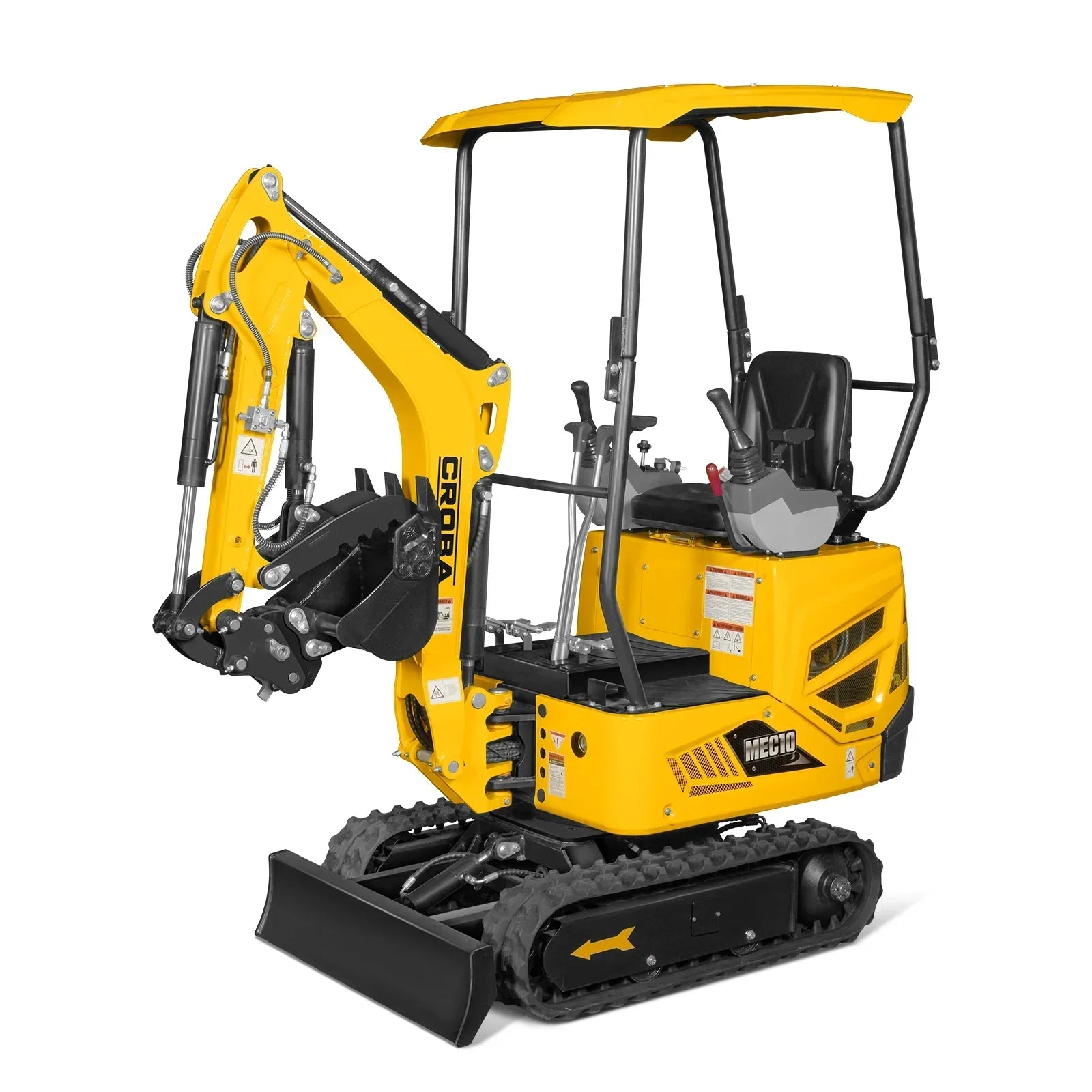

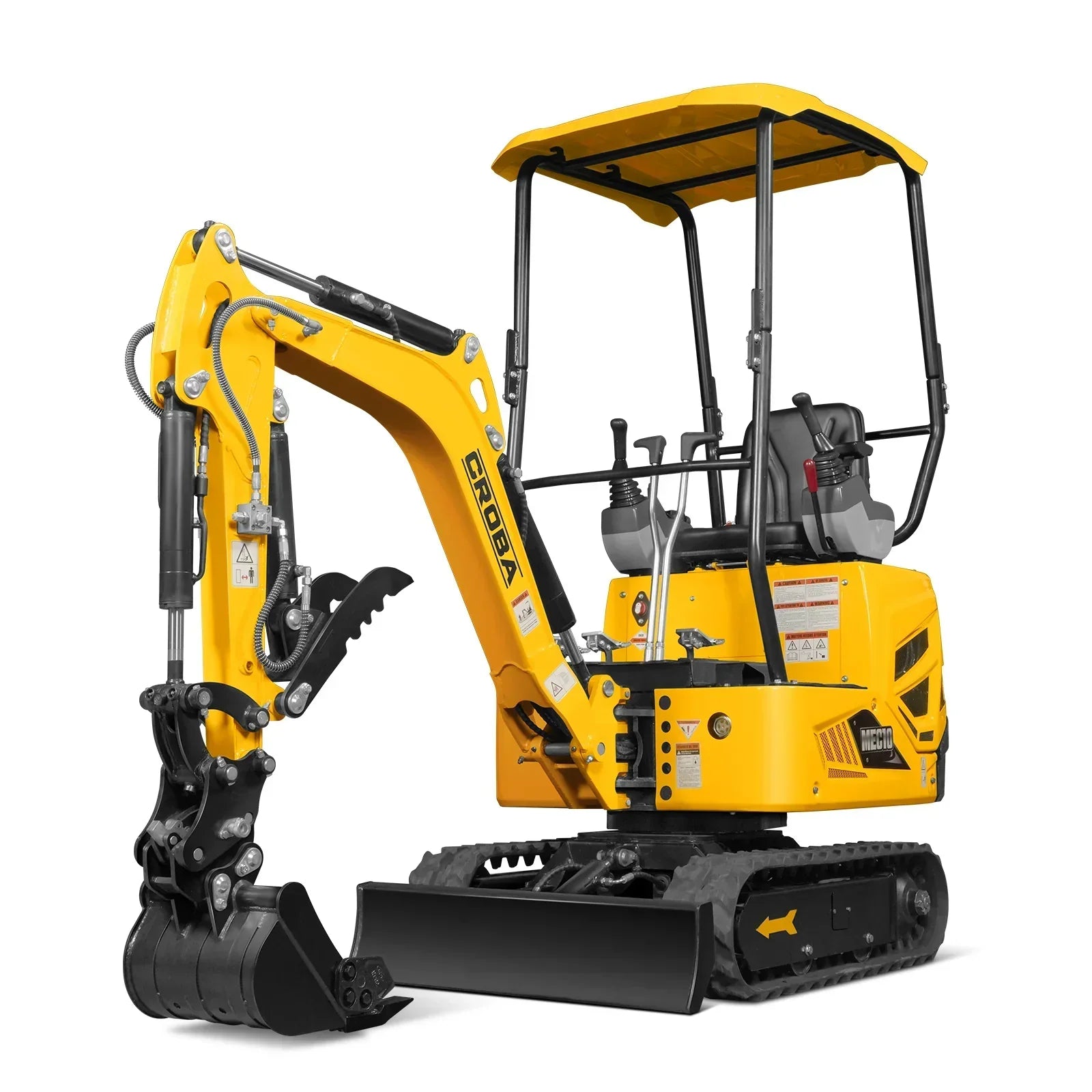

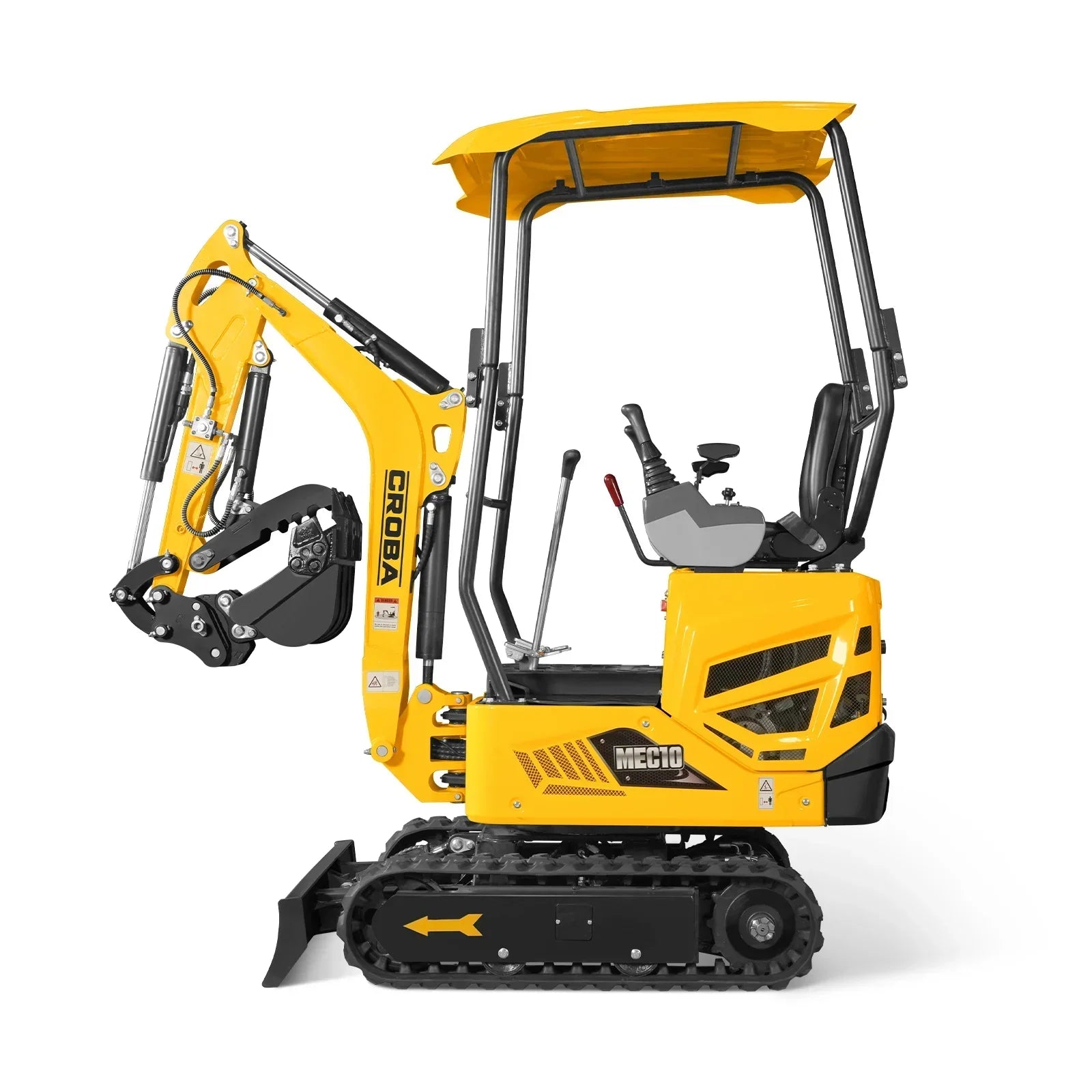

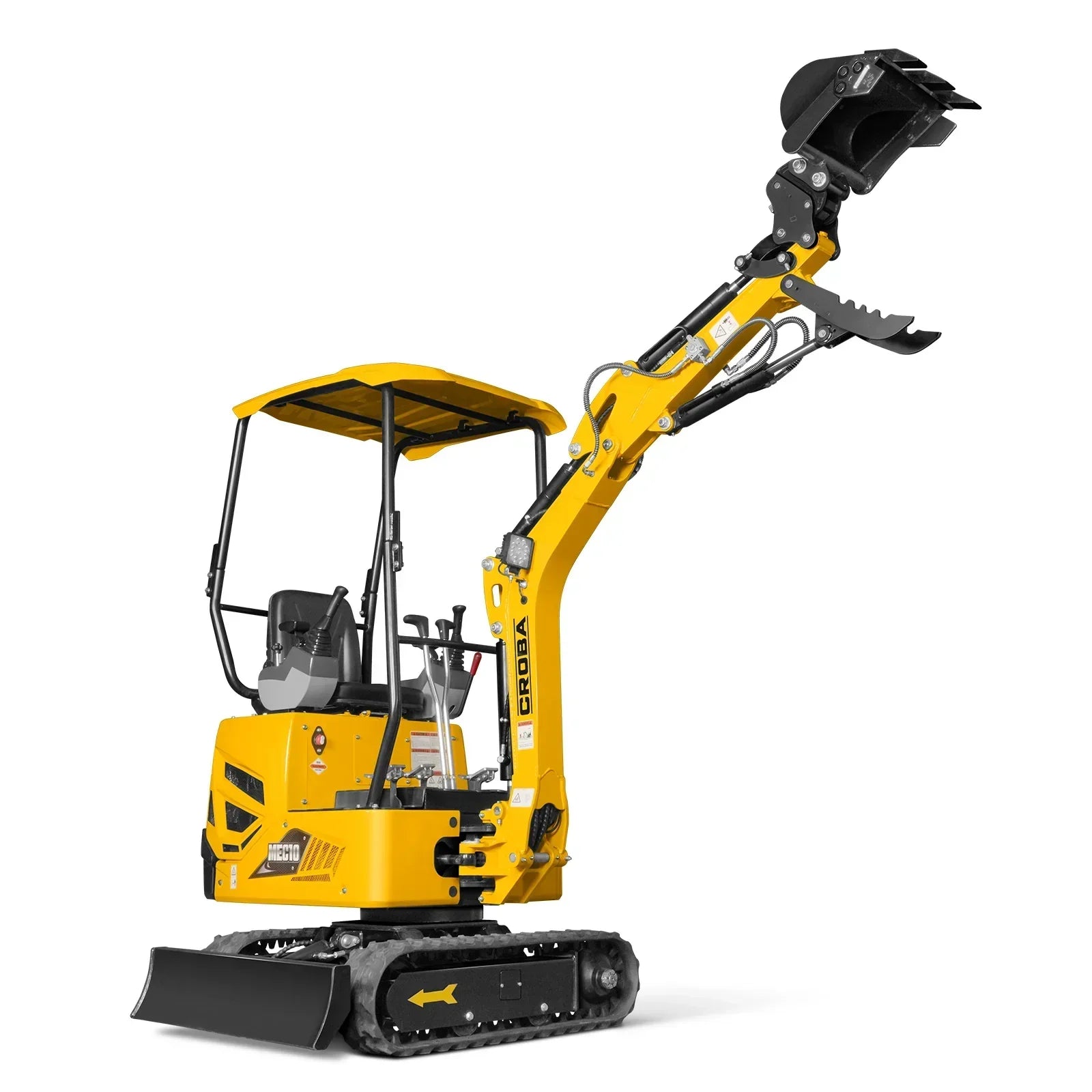

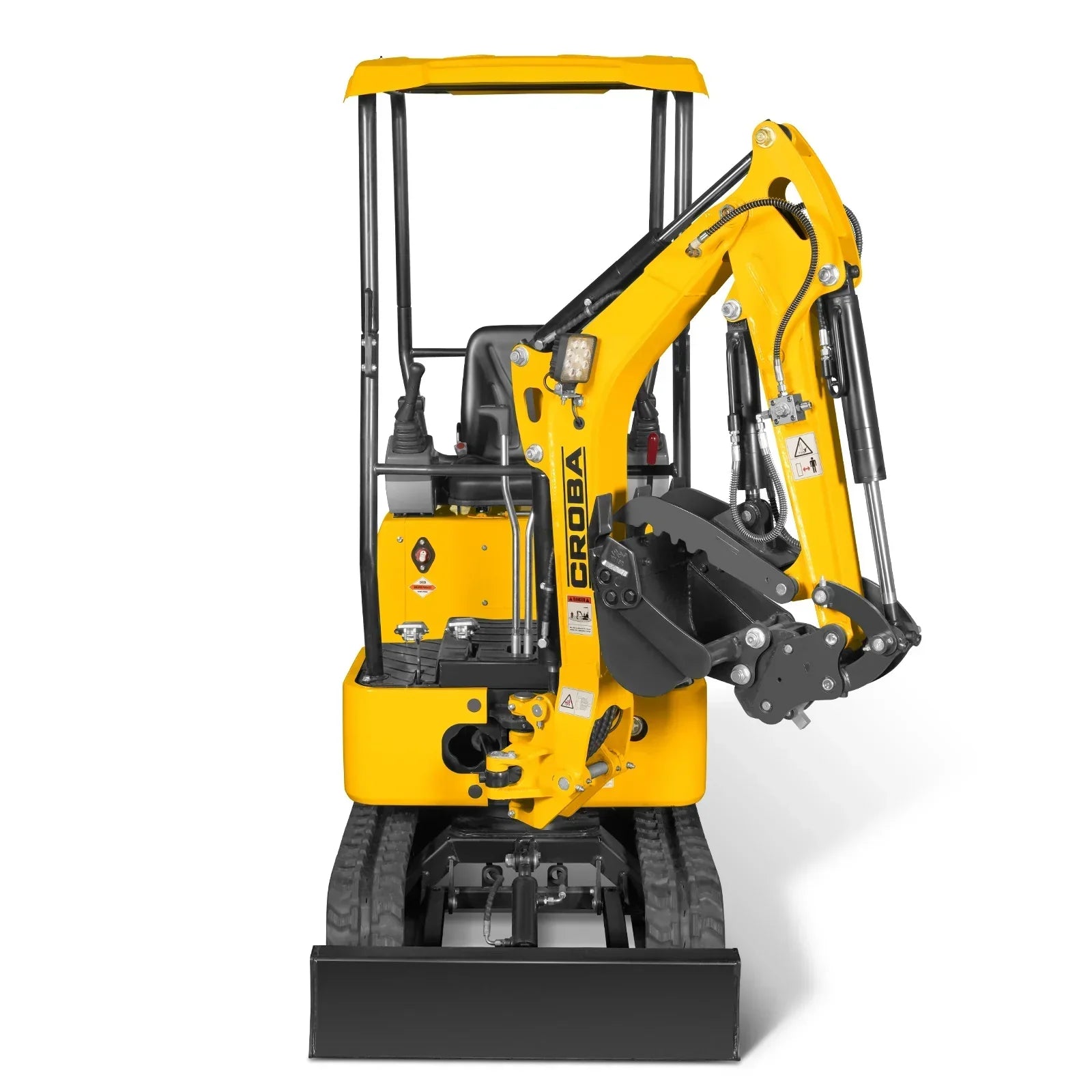

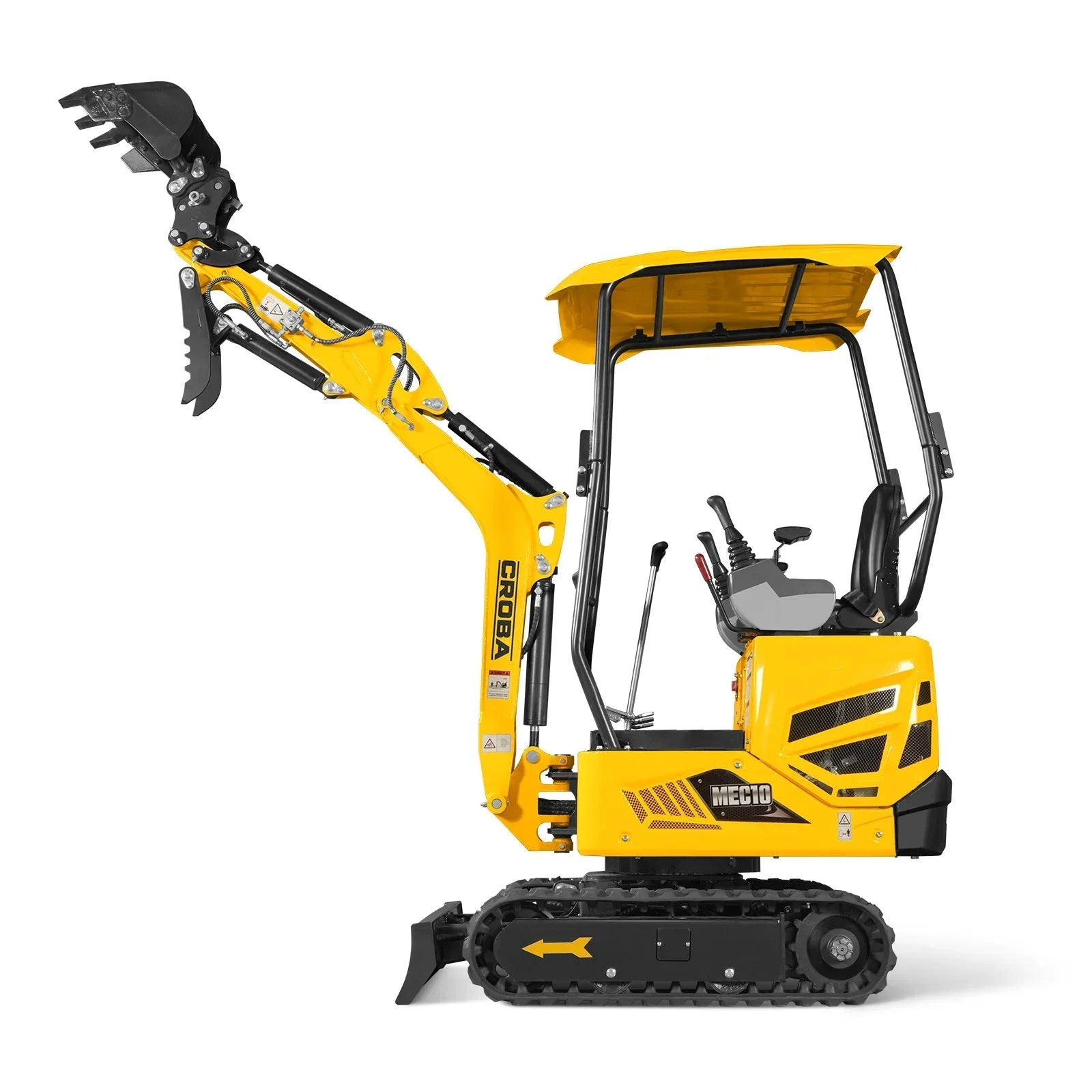

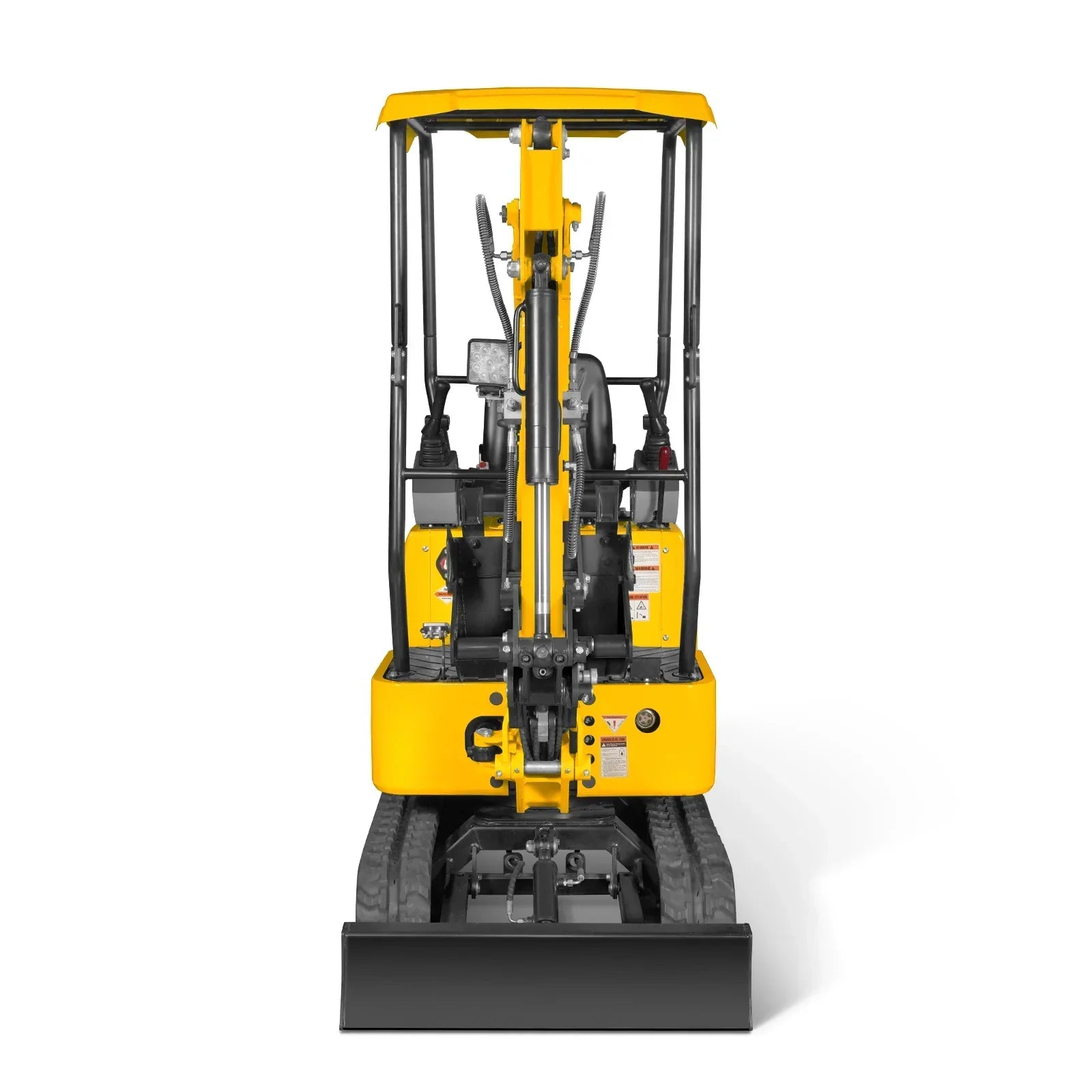

Mini Compact Excavator B&S VANGUARD 408cc 14hp Engine, 65.7” Max. Digging Depth, 2370 LBS Operating Weight, MEC10

Mini Compact Excavator B&S VANGUARD 408cc 14hp Engine, 65.7” Max. Digging Depth, 2370 LBS Operating Weight, MEC10

$3,849.50
$3,849.50
SAVE % Sold out

🔥 Almost sold out – Once they’re gone, they’re gone!

🚚 Free shipping on all orders

💯 [30]-day satisfaction guarantee

Don’t miss out—click below to secure yours!

Mini Compact Excavator B&S VANGUARD 408cc 14hp Engine, 65.7” Max. Digging Depth, 2370 LBS Operating Weight, MEC10

$3,849.50
$3,849.50
SAVE % Sold out

    Get it between - and -.

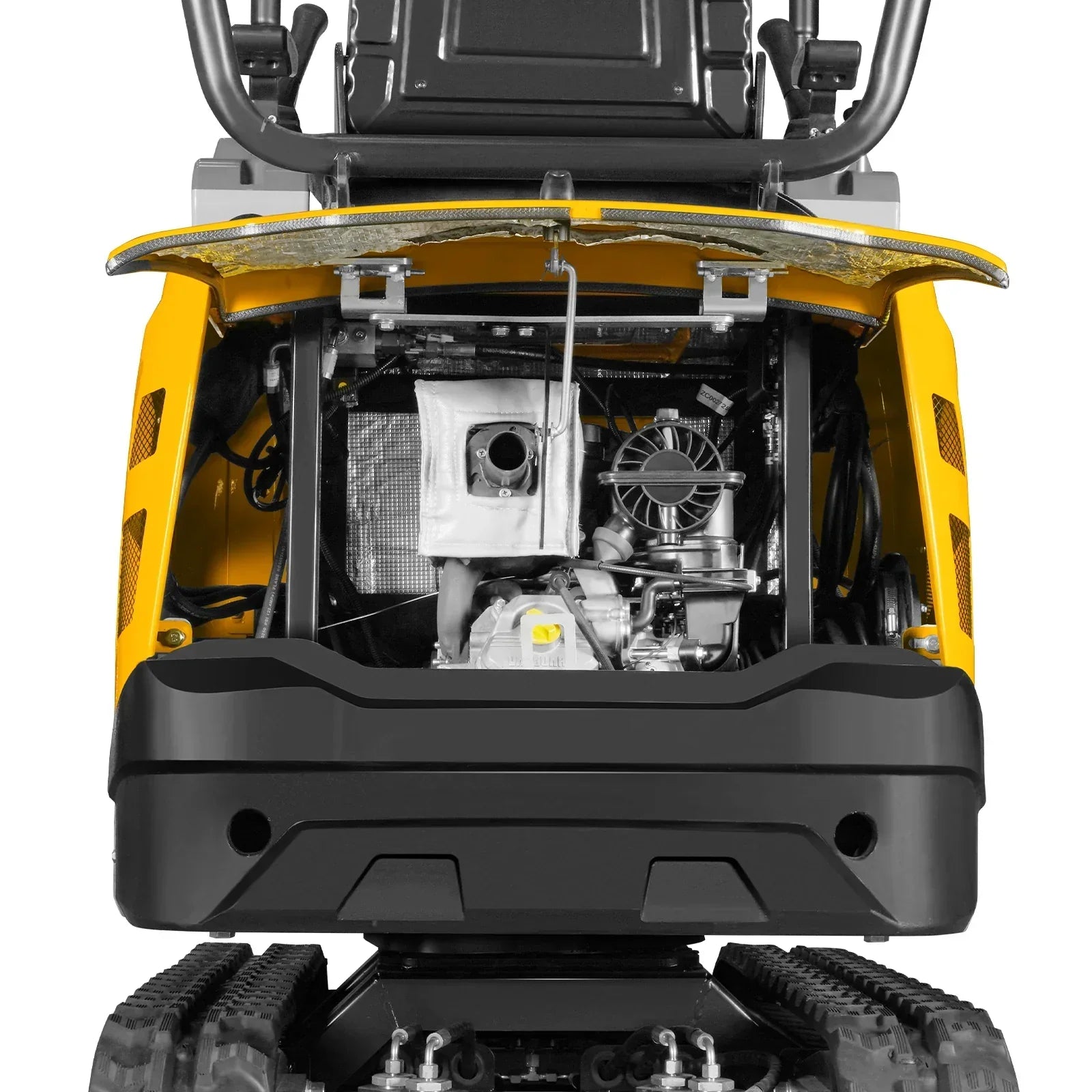

    ENGINE
    Model Vanguard 25V000 Displacement  408cc
    No.Of Cylinders 1 Engine Output 14hp
    Stroke 2.638in Warranty for Engine 3-Year
    Bore 3.465in Fuel Tank 1.52 gal
    Rated speed 3600rpm Engine Oil 0.7gal
    TRAVEL SYSTEM
    Max. Travel Speed 0.75 mile/h Ground Pressure 5.1psi
    Maximum Traction Force 3035 lbf Gradeability - Maximum Maximum 30 degrees
    Ground Clearance 15.9in Operating Weight 2370lbs

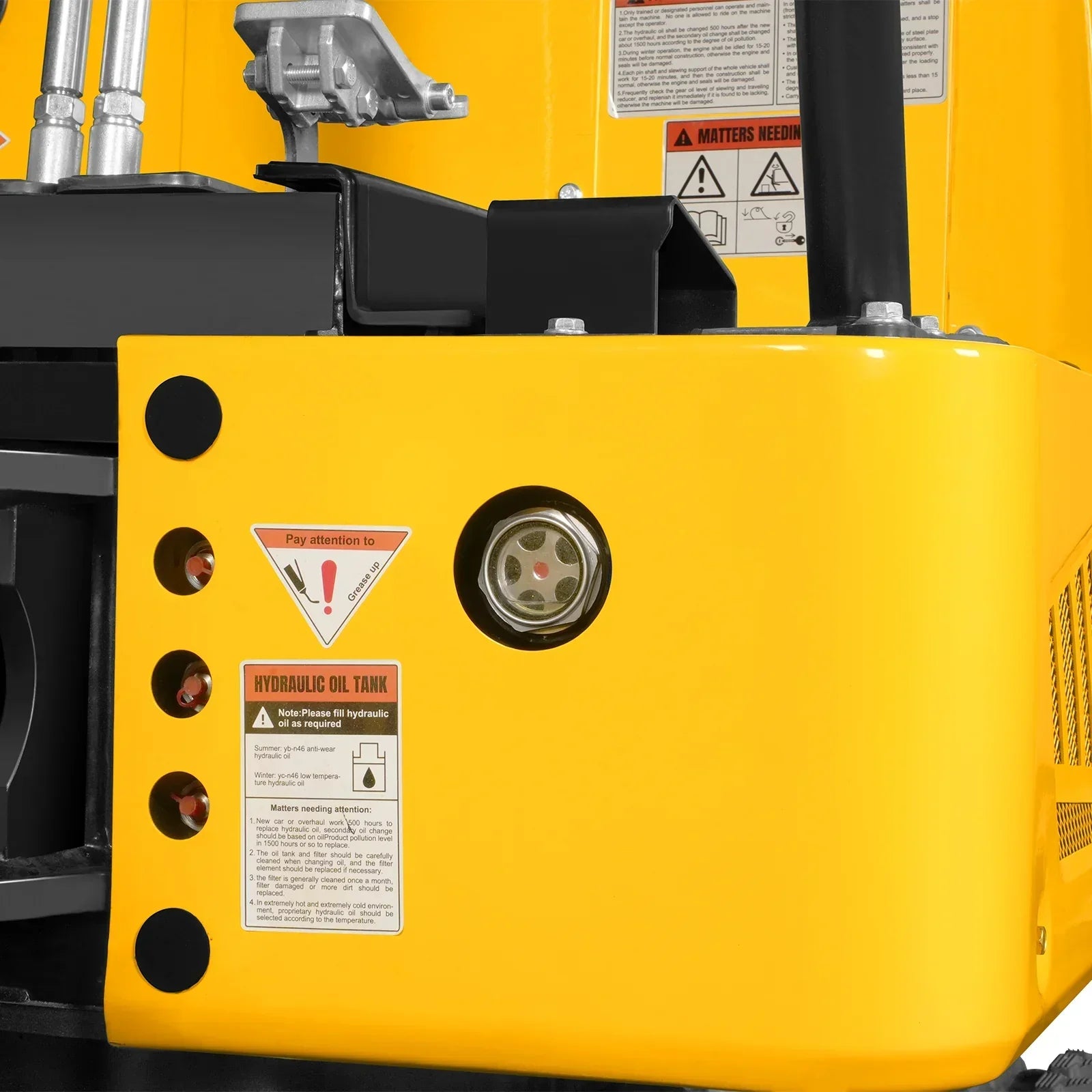

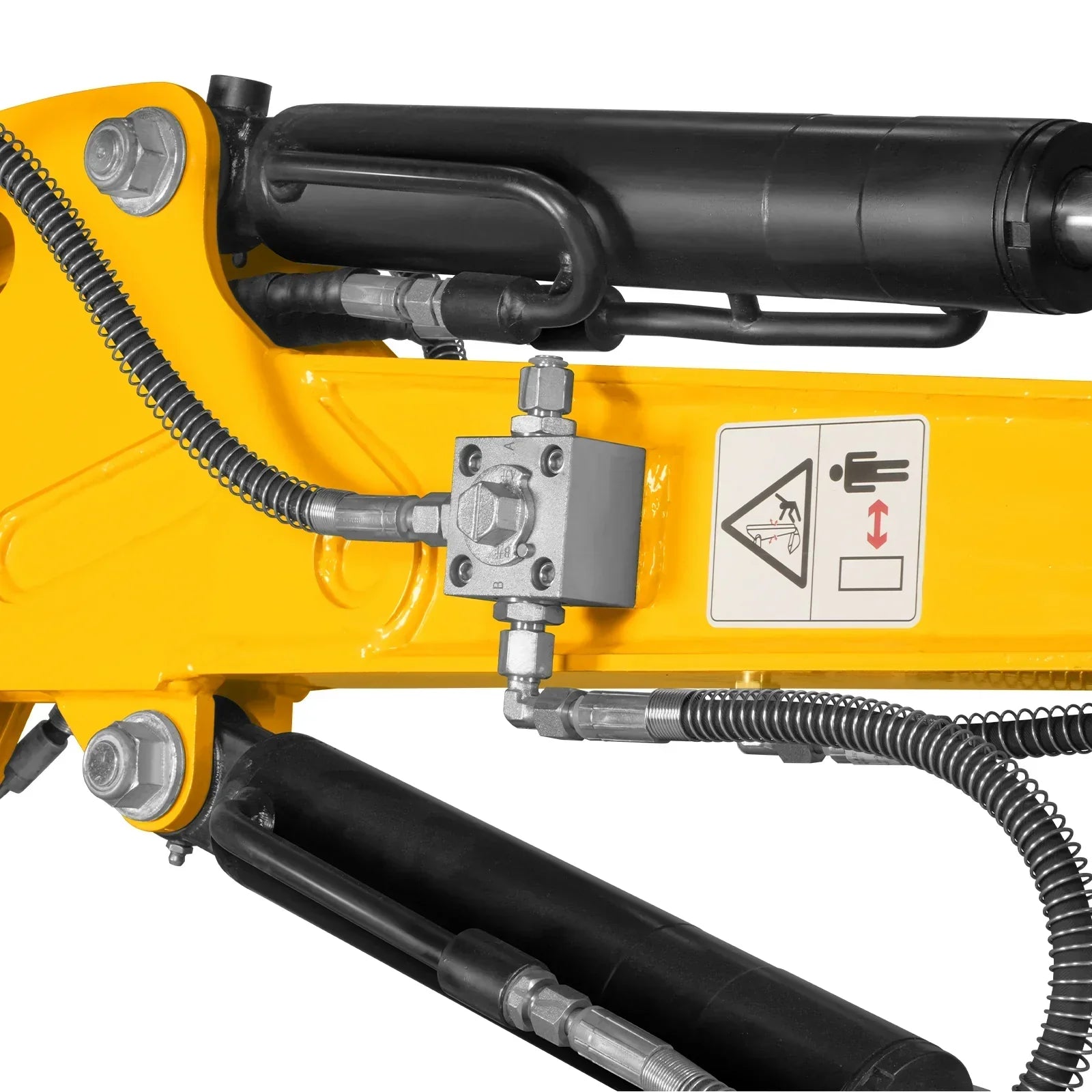

    HYDRAULIC SYSTEM

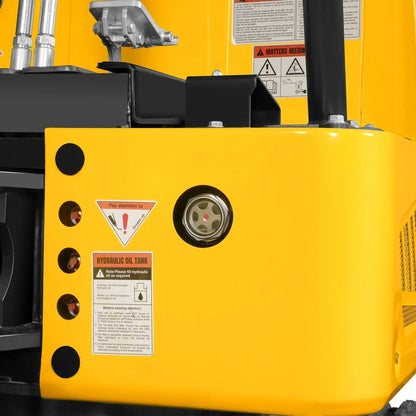

    Hydraulic Oil Tank 3.96gal Max.Discharge Flow 4.65 gpm
    SWING SYSTEM
    Swing Speed 8rpm Tail Swing Radius 32.6in
    DIGGING FORCE
    Bucket Digging Force 1619 lbf Arm Digging Force 1191 lbf
    Bucket Capacity 0.7 ft³ Bucket Width 15 in
    SCOPE OF WORK
    Max.Digging Height 109 in Min Turning Radius Of Working Device 48.1in

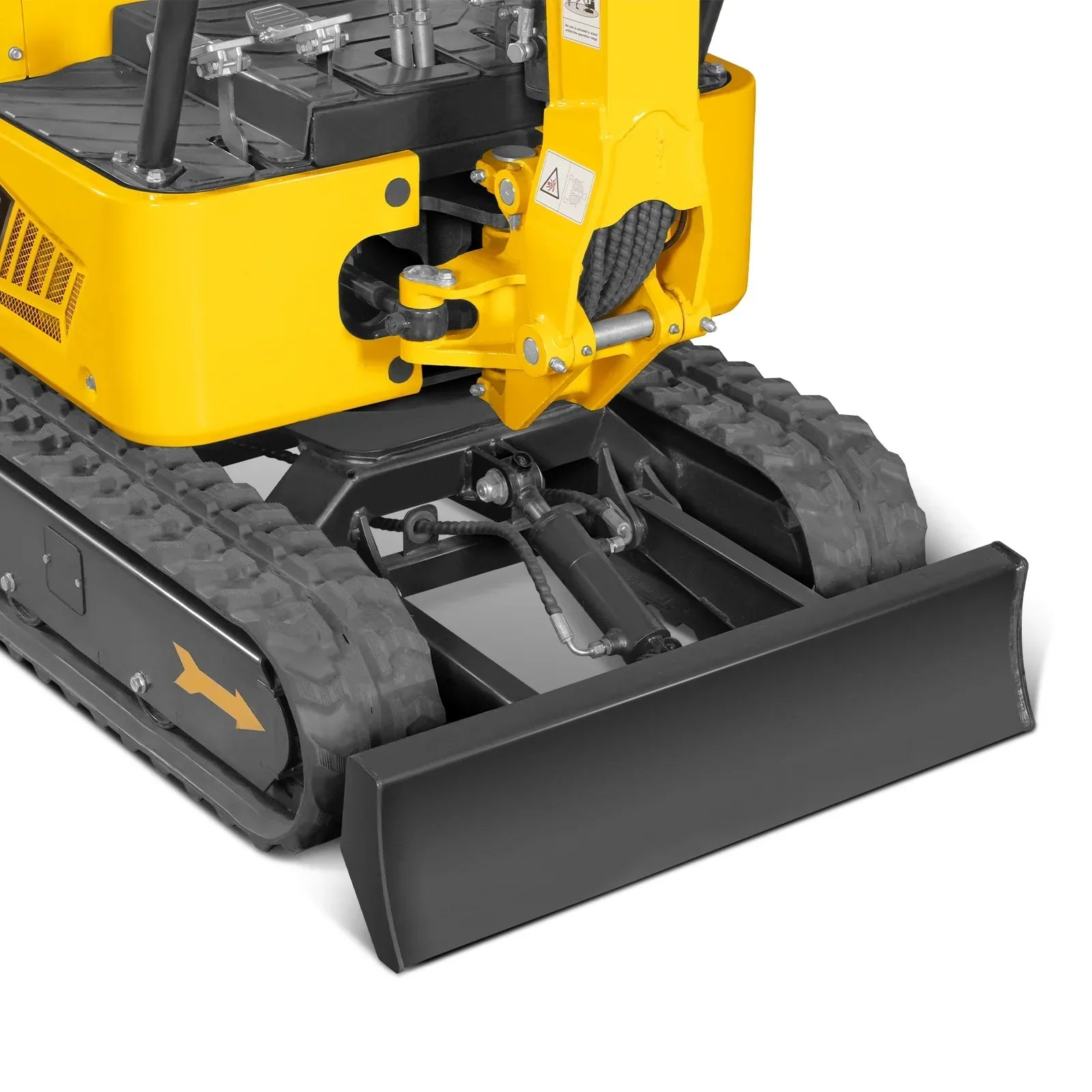

    Max.Dumping Height 80 in Max. Lifting Height Dozer Blade 5.9in
    Max.Digging Depth 65.7in Max. Depth Dozer Blade 7.4in
    Max.Vertical Digging Depth 62.6in Boom Swing - Left 53°
    Max Digging Radius 119in Boom Swing - Right 40°
    Max.digging Radius At Ground Level 118.7in
    DIMENSIONS
    Transportation Length 82in/115in Crawler Wheel Base 36in
    Overall Width  37in Track Belt/Shoe Width 7in
    Overall Height（To Top Of Cab） 88.5in Track Length 48.5in
    Counter Weight Ground Clearance 16in Track Width 37in
    SERVICE
    Package Method Wood Case Warranty for Machine 1 Year
    Packing Size 91x40x98 in Weight (N.W./G.W.)  2180/2440 lbs

    WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
    Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s)  for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
